Mini Concealed Flat Plate Support (Two Sizes)

The Mini Concealed Flat Plate Supports are smaller version of our very popular Concealed Flat Plate Support floating/hidden stud mounted shelf brackets.

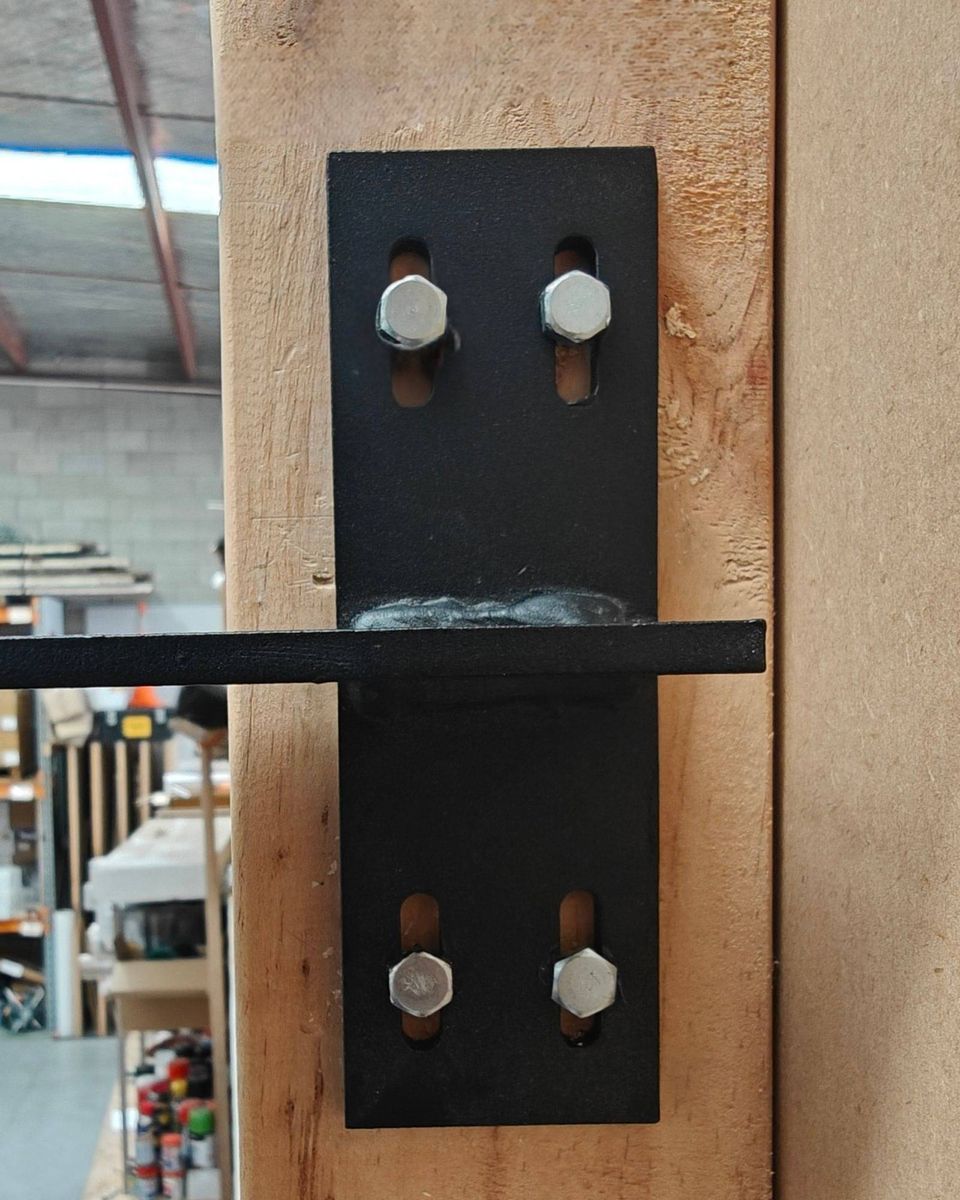

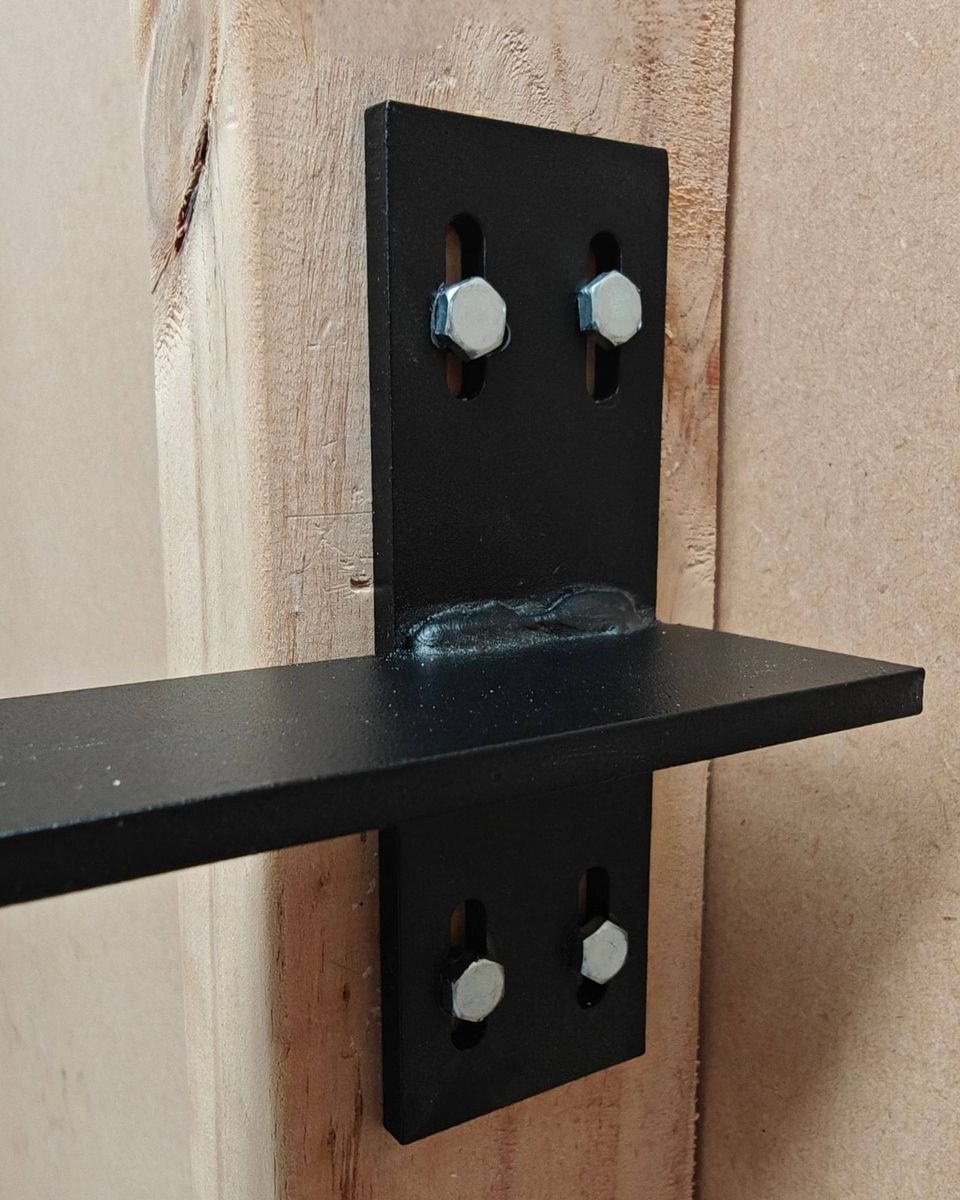

These brackets are suited to support shelves, bench tops, bar tops or cabinets. The concealed brackets are designed to be mounted directly to wall studs behind the plaster board. Four mounting holes give this bracket an extremely high weight capacity, making it well suited for use with heavier items. When the plaster board is installed, the brackets protrude out for a shelf of surface to rest on.

These brackets are made of mild steel and powder coated black. The fixing plate is 6mm thick, 50mm wide and 150mm long.

The bracket is 6mm thick, 50mm wide :

Size 1: 200mm long (150mm from edge to mounting plate to end of bracket)

Size 2: 300mm long (250mm from edge to mounting plate to end of bracket)

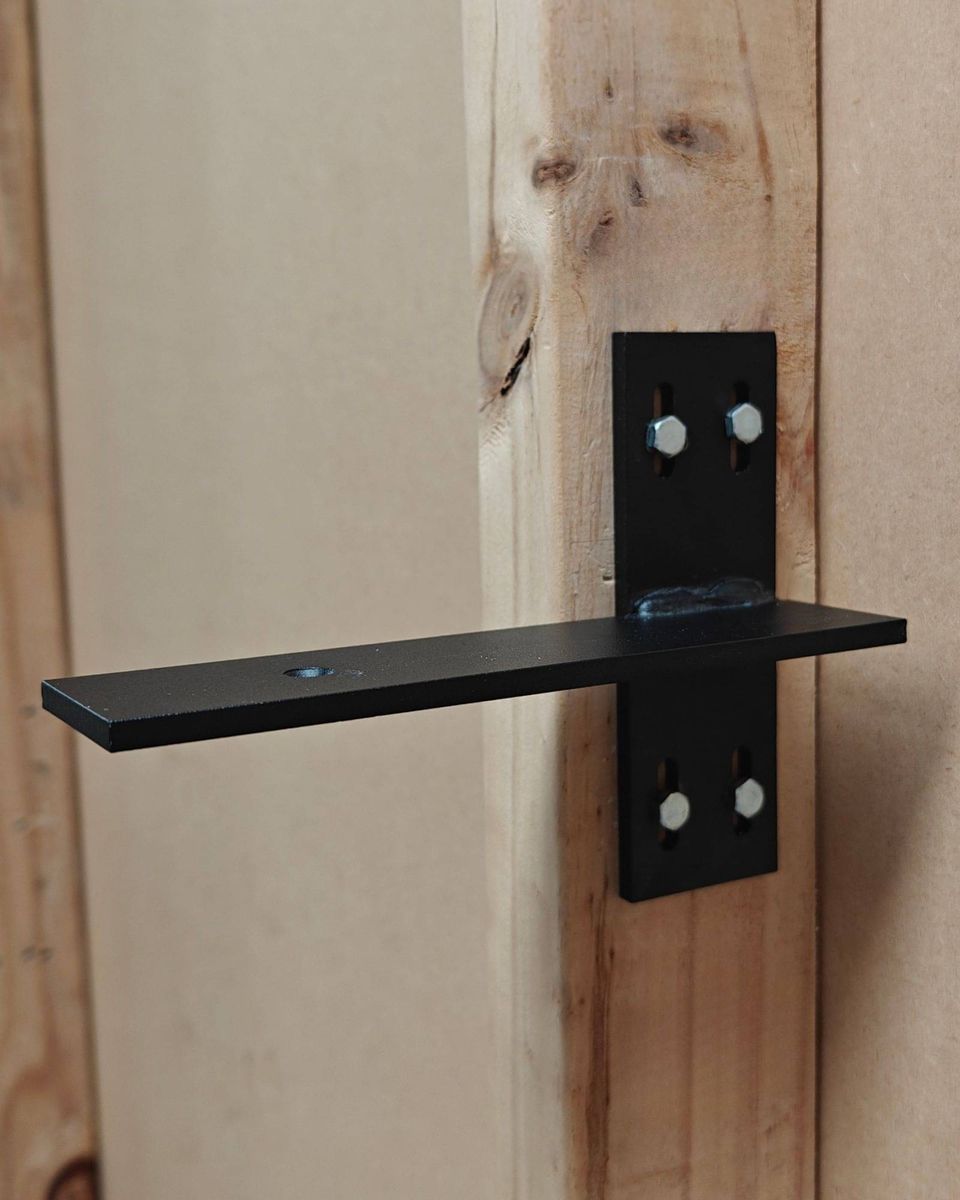

Each bracket has a recessed hole to screw onto the item you are installing.

Four hex wood bolts included per bracket 50mm x 6 gauge.

These brackets if fixed correctly can hold up to 90kg per pair of brackets.

Brackets sold individually.
